Pair Twisted Conductor And Tinned Copper Braiding Shield Customized Spiral Cable

Brand Name : Spiral Cable

Model Number : TH-812455

Certification : UL, CUL, CSA, AWM, CE

Place of Origin : Dongguan, China

MOQ : 200 PCS

Price : USD0.14~0.58 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 800,000pcs per month

Delivery Time : 10 days for ready goods

Packaging Details : 200pcs per carton box

Category : Spiral Cable

Feature : Tinned Copper Braiding Shield

Rated Temperature : 80 degree

Rated Voltage : 600V

Dimensions : To be customized per request

Standard : RoHS Compliant

Contact Now

Pair Twisted Conductor And Tinned Copper Braiding Shield Customized Spiral Cable

Spiral Cable is one of Tongheng main products. Pair Twisted Conductor And Tinned Copper Braiding Shield Customized Spiral Cable can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. Pair Twisted Conductor And Tinned Copper Braiding Shield Customized Spiral Cable is one of the excellent example. Its remarkable advantage is Pair twisted and tinned copper braiding shielded.

Here below is the product properties:

Pure copper wire conductors.

Pair twisted conductor wires.

Tinned copper braiding shield.

100% RoHS compliant.

Product parameters:

Spiral Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG mm mm % mm mm Ω/KM(20℃)
2C 30 0.76 1.90 ≥65 0.38 5.80 381.00
2C 28 0.76 2.00 ≥65 0.38 6.10 239.00
2C 26 0.76 2.10 ≥65 0.38 6.20 150.00
2C 24 0.76 2.20 ≥65 0.38 6.40 94.20
2C 22 0.76 2.40 ≥65 0.38 6.80 59.40
2C 20 0.76 2.50 ≥65 0.38 7.20 36.70
2C 18 0.76 2.80 ≥65 0.38 7.80 23.20
2C 16 0.76 3.10 ≥65 0.38 10.00 14.60
3C 30 0.76 1.90 ≥65 0.38 7.70 381.00
3C 28 0.76 2.00 ≥65 0.38 7.90 239.00
3C 26 0.76 2.10 ≥65 0.38 8.10 150.00
3C 24 0.76 2.20 ≥65 0.38 8.30 94.20
3C 22 0.76 2.40 ≥65 0.38 8.70 59.40
3C 20 0.76 2.50 ≥65 0.38 9.20 36.70
3C 18 0.76 2.80 ≥65 0.38 9.80 23.20
4C 30 0.76 1.90 ≥65 0.38 7.90 381.00
4C 28 0.76 2.00 ≥65 0.38 8.10 239.00
4C 26 0.76 2.10 ≥65 0.38 8.40 150.00
4C 24 0.76 2.20 ≥65 0.38 8.70 94.20
4C 22 0.76 2.40 ≥65 0.38 9.10 59.40
4C 20 0.76 2.50 ≥65 0.38 9.70 36.70
5C 30 0.76 1.90 ≥65 0.38 8.20 381.00
5C 28 0.76 2.00 ≥65 0.38 8.50 239.00
5C 26 0.76 2.10 ≥65 0.38 8.60 150.00
5C 24 0.76 2.20 ≥65 0.38 9.00 94.20
5C 22 0.76 2.40 ≥65 0.38 9.60 59.40
6C 30 0.76 1.90 ≥65 0.38 8.60 381.00
6C 28 0.76 2.00 ≥65 0.38 8.90 239.00
6C 26 0.76 2.10 ≥65 0.38 9.20 150.00
6C 24 0.76 2.20 ≥65 0.38 9.50 94.20

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.

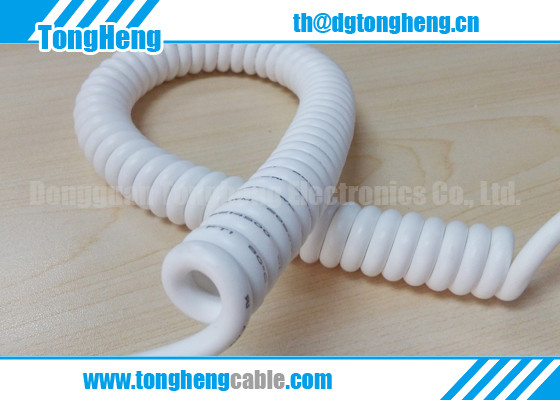

Pair Twisted Conductor And Tinned Copper Braiding Shield Customized Spiral Cable
